Cable Tray & Trunking Manufacturer in Pakistan
MITEC Engineering is Pakistan's premier manufacturer of high-grade perforated cable trays, ladder type trays, solid duct trunking, and wire mesh baskets. Engineered with advanced CNC technology, our durable products meet the exact technical standards of industrial facilities, power plants, and telecom networks nationwide.
Cable Management Product Range
Manufactured in Karachi with high structural strength for power, control, and data cabling.
Cable Trays
Perforated Cable Tray
Engineered with continuous ventilation slots for heat dissipation and cable tie attachment.
Heavy Industrial
Ladder Type Cable Tray
High structural rigidity designed for heavy power cabling across long installation spans.
Accessories

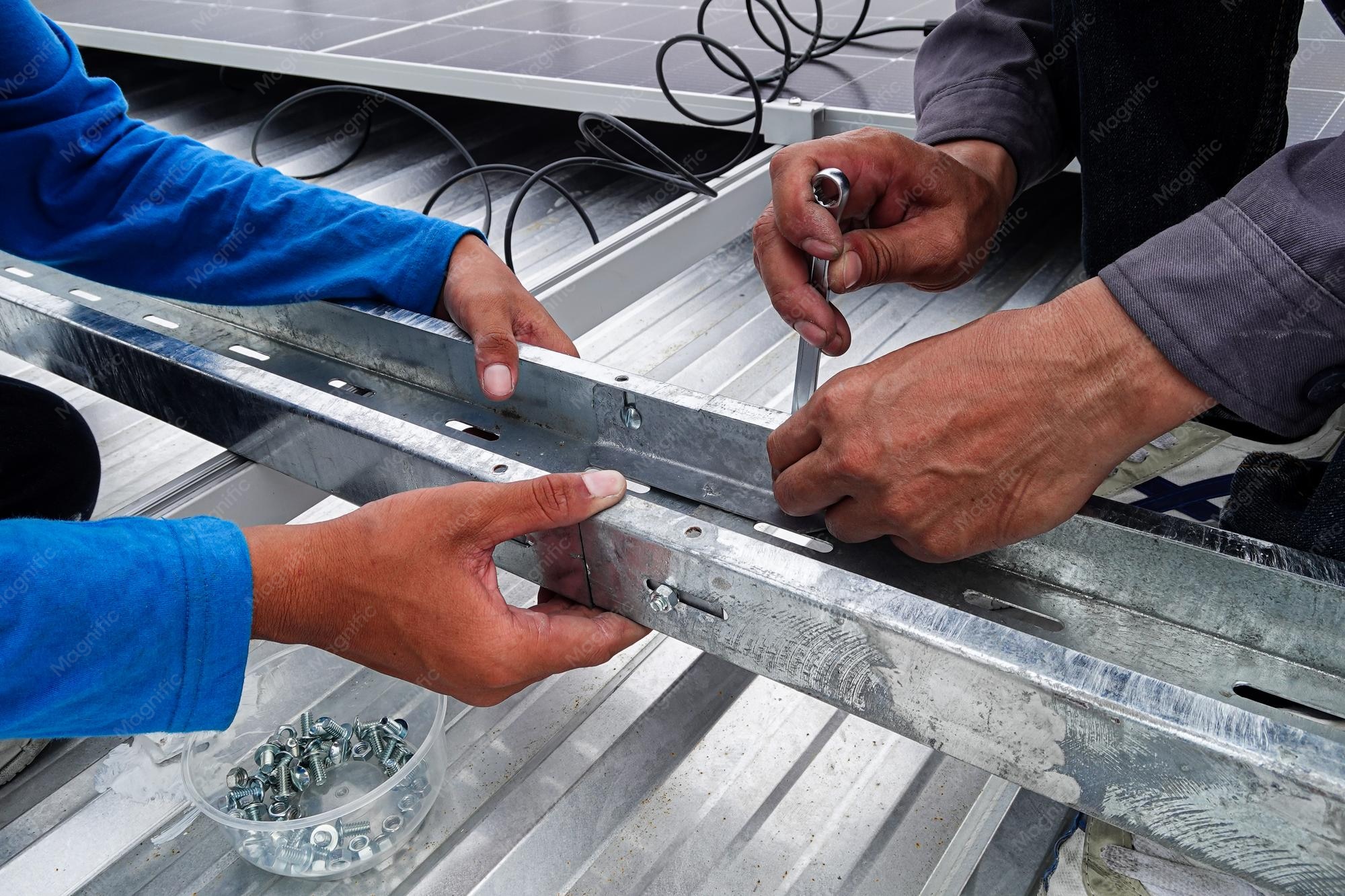

Tray Fittings & Joiners
Complete fitting range including 90° horizontal bends, tees, crosses, risers, and coupler plates.
Standard Dimension Matrix
| Width (mm) | Flange Height | Sheet Gauge (Thickness) | Finish Options | Standard Length |
|---|---|---|---|---|
| 100 mm (4") | 25mm / 50mm | 1.2mm – 1.5mm MS / GI | Grit Powder / Pre-Galvanized | 2.44m (8 Ft) / 3.0m |
| 150 mm (6") | 50mm / 75mm | 1.2mm – 2.0mm MS / GI | Grit Powder / Hot-Dip Galvanized | 2.44m (8 Ft) / 3.0m |
| 300 mm (12") | 50mm / 75mm / 100mm | 1.5mm – 2.0mm MS / GI | Grit Powder / Hot-Dip Galvanized | 2.44m (8 Ft) / 3.0m |
| 450 mm (18") | 75mm / 100mm / 150mm | 1.5mm – 2.5mm MS / GI | Grit Powder / Hot-Dip Galvanized | 2.44m (8 Ft) / 3.0m |
| 600 mm (24") | 100mm / 150mm | 2.0mm – 3.0mm Heavy Duty MS | Hot-Dip Galvanized / Powder Coated | 2.44m (8 Ft) / 3.0m |
| 900 mm (36") | 100mm / 150mm | 2.0mm – 3.0mm Heavy Duty MS | Hot-Dip Galvanized / Powder Coated | 2.44m (8 Ft) / 3.0m |
Our Precision Workflow
In-house sheet metal fabrication steps at our Karachi facility.
CAD Engineering
Detailed 3D modeling of slot patterns and structural load specifications.
CNC Punching & Laser
High-speed CNC punching and laser cutting for precise slotting and hole alignment.
Press Brake Bending
Hydraulic press brake forming to achieve exact flange profiles and load rating.
Powder Coating / HDG
Scratch-resistant Grit Black powder coating or Hot-Dip Galvanizing for long life.
